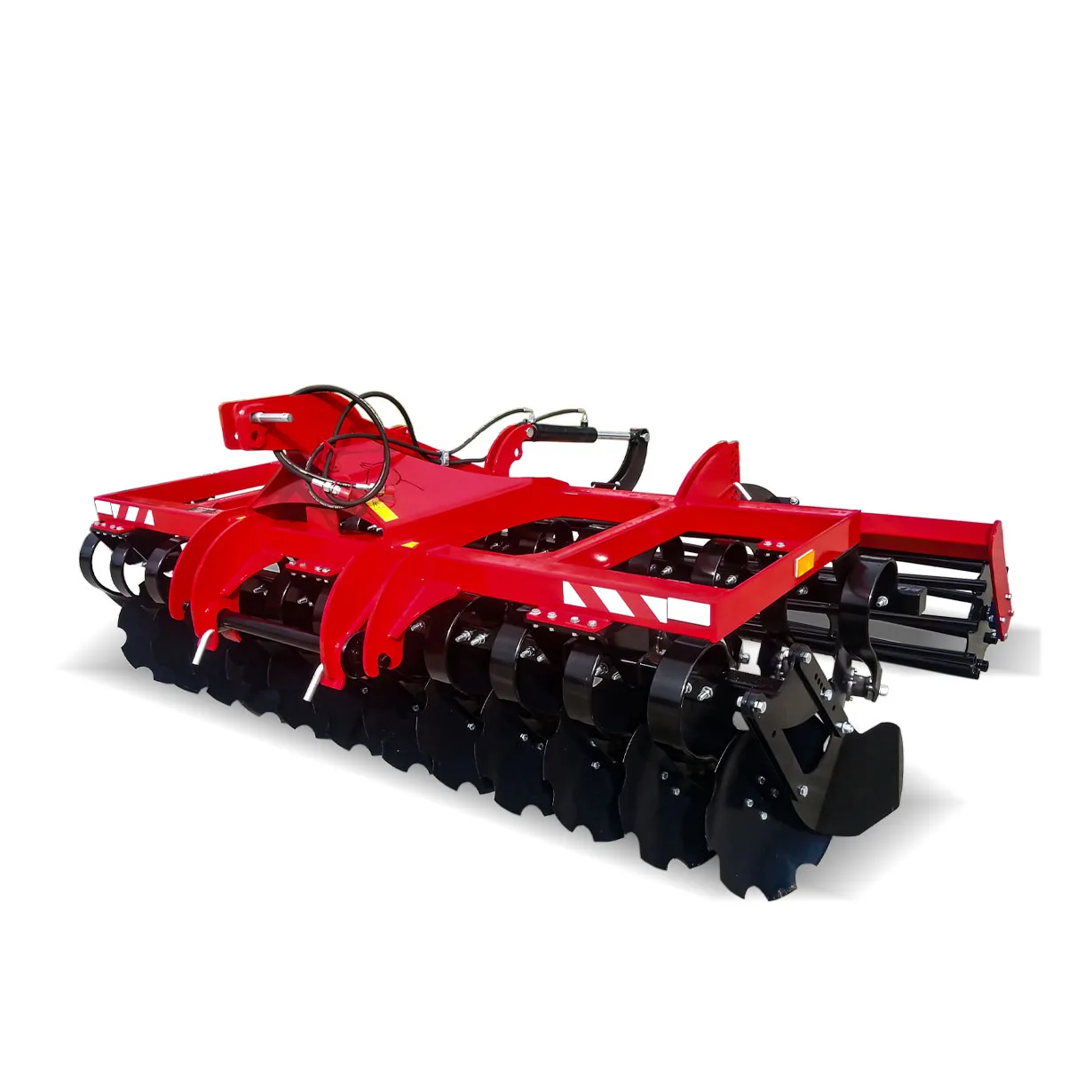

THOR BT Disc Cultivators

Technical Data

THOR BT Disc Harrow Aggregates – Technical Specifications

working width THOR BT Disc Harrow Aggregates type HP kg
3 Disc harrow Ø560 mm with tubular roller BT-600/3,0 100-120 1300
4H Disc harrow Ø600 mm with HYDRAULIC tubular roller BT-600/4,0 140-160 1580
5H Disc harrow Ø560 mm with HYDRAULIC tubular roller BT600/5,0 160-180 2760
6H Disc harrow Ø510 mm with HYDRAULIC tubular roller BT600/6,0 180-200 3280
Standard: Maintenance-free hub
Disc spacing: 85 cm
Transport system: Transport trolley with drawbar
OPTIONS
2,7 – 3,0 PACKER roller
4 PACKER roller
5 PACKER roller
6 PACKER roller
2,7 – 3,0 RING roller Ø500
4 RING roller Ø500
5 RING roller Ø500
6 RING roller Ø500
3 V-RING, T-RING, C-RING rollers
4 V-RING, T-RING, C-RING rollers
5 V-RING, T-RING, C-RING rollers
6 V-RING, T-RING, C-RING rollers
* Ø 600 wał V-T-C-RING (*dopłata do każdej szerokości)
2,7 – 3,0 RUBER roller
4 RUBBER roller
5 RUBER roller
6 RUBBER roller
3 TUBULAR roller Ø 600
2,7 – 3,0 Spring tine harrow row Ø12 mm
4,0 – 5,0 Spring tine harrow row Ø12 mm
6 Spring tine harrow row Ø12 mm
LED lighting

Standard equipment

  • two rows of discs Ø 510 mm
  • rear tube roller Ø 490 mm with 8 bars
  • side deflectors
  • maintenance-free hub with sealing and automotive-grade bearings

Optional equipment

  • hydraulic lift system
  • discs Ø 560 mm
